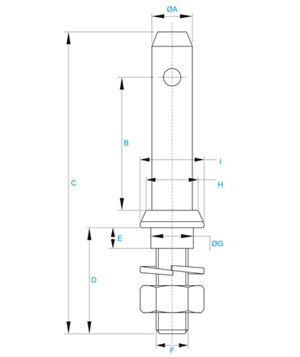

  • lower link pins
    Code
    A
    B
    C
    D
    E
    F
    G
    H
    I
    BLLP2201M
    22
    50
    130
    40
    5
    20x1.5
    20
    32
    38
    BLLP2202M
    22
    50
    140
    40
    14
    22x1.5
    22
    30
    38
    BLLP2203M
    22
    50
    140
    40
    14
    22x1.5
    28
    30
    38
    BLLP2204U
    22
    51
    149
    54
    11
    7/8"UNF
    22
    30
    36
    BLLP2205U
    22
    51
    140
    48
    6
    3/4"UNF
    19
    30
    36
    BLLP2206U
    22
    51
    140
    43
    11
    5/8"UNF
    22
    30
    36
    BLLP2207U
    22
    51
    146
    38
    22
    7/8"UNF
    28.6
    30
    36
    BLLP2208U
    22
    51
    146
    50.8
    9.5
    7/8"UNC
    28.6
    32
    38
    BLLP2209U
    22
    51
    146
    50.8
    9.5
    1"UNF
    25.4
    30
    36
    BLLP2210U
    22
    51
    138
    38
    14
    7/8"UNF
    28.6
    30
    36
    BLLP2211M
    22
    51
    128
    38
    10
    20x1.5
    20
    30
    36
    BLLP2212M
    22
    51
    128
    38
    10
    20x1.5
    20
    30
    36
    BLLP2213M
    22
    60
    150
    40
    20
    22x1.5
    22
    32
    38
    BLLP2214M
    22
    60
    150
    40
    20
    22x1.5
    28
    32
    38
    BLLP2215M
    22
    60
    146
    40
    20
    22x1.5
    25
    32
    32
    BLLP2216U
    22
    51
    140
    45
    10
    7/8"UNF
    22
    30
    34
    BLLP2217U
    22
    64
    165
    56
    16
    7/8"UNF
    22.2
    32
    38
    BLLP2518M
    25
    60
    150
    40
    20
    22x1.5
    25
    34
    40
    BLLP2519M
    25
    60
    150
    40
    20
    22x1.5
    28
    32
    38
    BLLP2820M
    28
    50
    155
    30
    50
    30x2.0
    30
    48
    50
    BLLP2821M
    28
    55
    150
    45
    14
    22x1.5
    24
    36
    42
    BLLP2822M
    28
    55
    150
    45
    15
    24x1.5
    24
    37
    43
    BLLP2823M
    28
    55
    150
    45
    14
    27x1.5
    28
    38
    43
    •

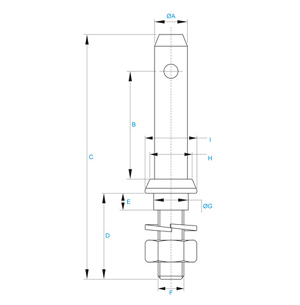

  • lower link pins
    Code
    A
    B
    C
    D
    E
    F
    G
    H
    I
    BLLP2824M
    28
    58
    147
    48
    10
    27x1.5
    27
    37
    43
    BLLP2825M
    28
    58
    147
    48
    10
    27x1.5
    27
    48
    50
    BLLP2826M
    28
    60
    150
    45
    14
    22x1.5
    22
    38
    44
    BLLP2827M
    28
    60
    150
    40
    20
    22x1.5
    28
    38
    44
    BLLP2828M
    28
    60
    150
    40
    20
    22x1.5
    22
    38
    44
    BLLP2829M
    28
    60
    150
    40
    20
    22x1.5
    24
    38
    44
    BLLP2830M
    28
    62
    147
    38
    20
    22x1.5
    28
    48
    50
    BLLP2831M
    28
    64
    160
    38
    25
    27x1.5
    28
    38
    44
    BLLP2832M
    28
    65
    160
    30
    40
    30x2
    30
    48
    50
    BLLP2833M
    28
    71
    160
    40
    30
    30x2
    30
    48
    50
    BLLP2834U
    28.6
    51
    133.5
    42
    11
    7/8"UNF
    22
    37
    43
    BLLP2835U
    28
    51
    159
    60
    16
    9/8"UNF
    28.6
    38
    44
    BLLP2836U
    28.6
    51
    149
    36.5
    24
    3/4"UNF
    25.4
    38
    44
    BLLP2837U
    28.6
    57
    159
    60
    16
    9/8"UNF
    28.6
    37
    43
    BLLP2838U
    28.6
    60
    149
    51
    9.5
    9/8"UNC
    28.6
    37
    43
    BLLP2839U
    28.6
    60
    149
    50.8
    9.5
    1"UNF
    25.4
    38
    44
    BLLP2840U
    28.6
    60
    149
    54
    6.3
    3/4"UNF
    19
    38
    44
    BLLP2841U
    28.6
    60
    149
    38
    22
    7/8"UNF
    28.6
    38
    44
    BLLP2842U
    28.6
    60
    136.5
    35
    12.7
    7/8"UNF
    22
    38
    44
    BLLP2843U
    28.6
    60
    145
    44
    12.7
    7/8"UNF
    22
    38
    44
    BLLP2844U
    28.6
    63.15
    160
    54
    14
    7/8"UNF
    22.2
    38
    44
    BLLP3645U
    36
    54
    149
    48
    16
    9/8"UNF
    28.6
    46
    52
    BLLP3646U
    36.5
    58
    149
    45
    14
    1.3/8UNF
    35
    45
    52
    BLLP3647M
    36.5
    61
    165
    60
    11
    27x1.5
    27
    48
    50
