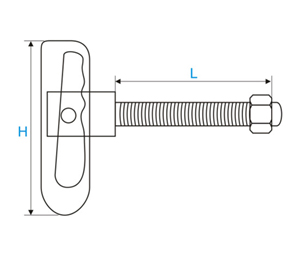

  • Drop lock pin with long screw
    Code
    Dia. L (mm)
    Dim. H (mm)
    Thread
    BDLPLS001
    35
    70
    1/2"UNF
    BDLPLS002
    76
    70
    1/2"UNF
    BDLPLS003
    38
    50
    M8X1.25
    BDLPLS004
    20
    50
    M8X1.25
    •

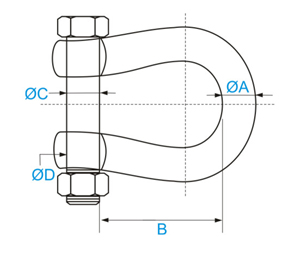

  • clevises ( screw pin )

    Code

    Body
    Dia. ØA
    (mm)
    Usable lenth B
    (mm)
    Pin
    Dia. ØC
    (mm)
    Thread
    Dia. ØD
    (mm)

    Weight lbs.

    BCSP001
    6.35
    25.87
    7.93
    5/16"UNC
    0.14
    BCSP002
    7.93
    31.75
    9.52
    3/8"UNC
    0.22
    BCSP003
    9.52
    36.51
    11.11
    7/16"UNC
    0.31
    BCSP004
    11.11
    42.85
    12.7
    1/2"UNC
    0.53
    BCSP005
    12.7
    49.21
    15.87
    5/8"UNC
    0.75
    BCSP006
    15.87
    63.5
    19.05
    3/4"UNC
    1.1
    BCSP007
    19.05
    76.2
    22.22
    7/8"UNC
    2.75
    BCSP008
    22.22
    82.55
    25.4
    1"UNC
    3.58
    BCSP009
    25.4
    95
    28.57
    1-1/8"UNC
    5.4
    BCSP010
    28.57
    107.95
    31.75
    1-1/4"UNC
    7
    BCSP011
    13.75
    114.3
    34.92
    1-3/8"UNC
    9.5
