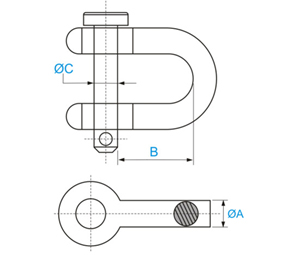

clevises ( Utility )

Code

Body Dia. ØA mm

Usable Lenth B mm

Pin Dia. ØC
mm

Weight lbs.

BCU001

6.35

22.22

7.93

0.1

BCU002

7.93

25.4

9.52

0.17

BCU003

9.52

31.75

11.11

0.28

BCU004

11.11

38.05

12.7

0.42

BCU005

12.7

42.86

15.87

0.66

BCU006

15.87

50.8

19.05

1.2

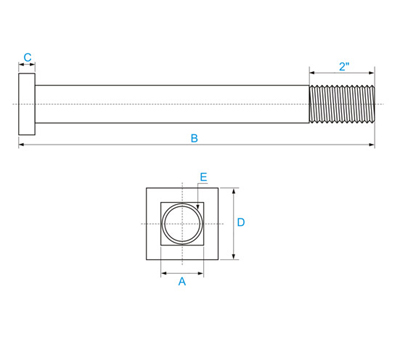

Disc harrow axle

Code

Dim. A

Dim. B

Dim. C

Dim. D

Thread E

BDHA01

7/8"

22"

1/2"

1-3/8"

7/8"UNC

BDHA02

7/8"

22-1/2"

1/2"

1-3/8"

7/8"UNC

BDHA03

7/8"

25-1/4"

1/2"

1-3/8"

7/8"UNC

BDHA04

7/8"

26"

1/2"

1-3/8"

7/8"UNC

BDHA05

7/8"

30-1/2"

1/2"

1-3/8"

7/8"UNC

BDHA06

7/8"

33"

1/2"

1-3/8"

7/8"UNC

BDHA07

7/8"

39-1/8"

1/2"

1-3/8"

7/8"UNC

BDHA08

7/8"

40-1/4"

1/2"

1-3/8"

7/8"UNC

BDHA09

7/8"

41-3/4"

1/2"

1-3/8"

7/8"UNC

BDHA10

1"

19"

1/2"

1-1/2"

1"UNC

BDHA11

1"

26-1/4"

1/2"

1-1/2"

1"UNC

BDHA12

1"

34"

1/2"

1-1/2"

1"UNC

BDHA13

1-1/8"

12"

1/2"

1-5/8"

1-1/8"UNC

BDHA14

1-1/8"

26-1/4"

1/2"

1-5/8"

1-1/8"UNC

BDHA15

1-1/8"

22"

1/2"

1-5/8"

1-1/8"UNC

BDHA16

1-1/8"

31"

1/2"

1-5/8"

1-1/8"UNC

BDHA17

1-1/8"

31-1/2"

1/2"

1-5/8"

1-1/8"UNC

BDHA18

1-1/8"

34"

1/2"

1-5/8"

1-1/8"UNC

BDHA19

1-1/8"

40"

1/2"

1-5/8"

1-1/8"UNC

BDHA20

1-1/8"

40-1/4"

1/2"

1-5/8"

1-1/8"UNC

BDHA21

1-1/8"

42"

1/2"

1-5/8"

1-1/8"UNC

BDHA22

1-1/8"

49-1/2"

1/2"

1-5/8"

1-1/8"UNC

BDHA23

1-1/8"

56-1/2"

1/2"

1-5/8"

1-1/8"UNC

BDHA24

1-1/8"

58-1/2"

1/2"

1-5/8"

1-1/8"UNC

BDHA25

1-1/8"

64"

1/2"

1-5/8"

1-1/8"UNC

BDHA26

1-1/8"

67-1/2"

1/2"

1-5/8"

1-1/8"UNC

BDHA27

1-1/8"

71-1/2"

1/2"

1-5/8"

1-1/8"UNC

BDHA28

1-1/8"

76-1/2"

1/2"

1-5/8"

1-1/8"UNC

BDHA29

1-1/8"

79"

1/2"

1-5/8"

1-1/8"UNC

BDHA30

1-1/8"

85-/1/2"

1/2"

1-5/8"

1-1/8"UNC

BDHA31

1-1/8"

94-/1/2"

1/2"

1-5/8"

1-1/8"UNC

BDHA32

1-1/8"

95-11/16"

1/2"

1-5/8"

1-1/8"UNC

BDHA33

1-1/8"

104-11/16"

1/2"

1-5/8"

1-1/8"UNC
