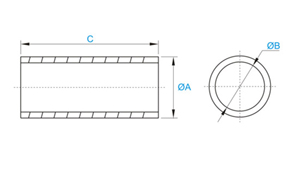

  • replacement bushes
    Code
    A (mm)
    B (mm)
    C (mm)
    BRB191641
    19
    16
    41
    BRB221635
    22
    16
    35
    BRB251941
    25.4
    19
    41
    BRB251951
    25.4
    19
    50.8
    BRB282245
    28.4
    22.2
    44.5
    BRB282263
    28.4
    22.2
    63
    BRB282235
    28.6
    22.2
    35
    BRB282244
    28.6
    22.2
    44
    BRB282251
    28.6
    22.2
    50.8
    BRB322251
    32
    25.4
    50.8
    BRB362845
    36.5
    28.6
    44.5
    •

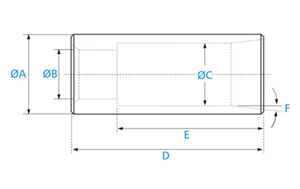

  • tine bushes

    Code

    Outer
    ØA
    (mm)
    Inner
    ØB
    (mm)
    Inner
    ØC
    (mm)
    Length
    D
    (mm)
    Depth
    E
    (mm)
    Angle
    F
    Ship
    Weight
    kg

    BTB00101
    38
    25.4
    31
    95
    74
    4°30
    0.3
    BTB00102
    40
    23
    25
    105
    78
    5°
    0.45
    BTB00103
    41
    24
    32
    110
    79
    5°
    0.51
    BTB00104
    41
    24
    32
    110
    79
    5°
    0.6
    BTB00105
    41
    25.4
    30
    108
    80
    5°30
    0.5
    BTB00106
    45
    25
    0
    110
    0
    5°
    0.765
    BTB00107
    50
    23
    29
    110
    85
    6°
    1.8
    BTB00108
    50
    25
    29
    110
    85
    6°
    1.08
    BTB00109
    50
    28
    0
    105
    0
    10°
    1.05
    BTB00110
    50
    30
    36
    108
    80
    5°30
    0.76
    BTB00111
    50
    30
    39
    110
    84
    6°
    1.63
    BTB00112
    51
    25
    32
    110
    109
    5°30
    1.085
    BTB00113
    51
    30
    38
    110
    86
    5°
    0.755
    BTB00114
    55
    32
    0
    120
    0
    4°30
    1.24
    BTB00115
    57
    12.59
    40
    120
    105
    5°30
    0
    BTB00116
    33
    0
    14
    63
    46
    3°
    0.292
    BTB00117
    33
    0
    16.5
    63
    48
    1.5°
    0.281
    BTB00118
    33
    0
    16.5
    63
    48
    1.5°
    0.263
    BTB00119
    33
    0
    16.5
    63
    48
    1.5°
    0.281
    BTB00120
    33
    0
    16.5
    63
    48
    1.5°
    0256
    BTB00121
    45
    22
    28
    97
    75
    5°
    1.27
    BTB00122
    50
    32
    39
    110
    84
    5°5
    1.02
    BTB00123
    60
    32
    39
    110
    84
    5°5
    1.8
