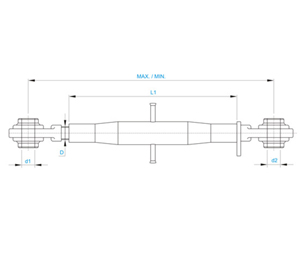

  • top link assemblies
    Code
    Cat d1-d2
    Pipe / L1
    Thread D
    Min.
    Max.
    BTL1900190
    0-0
    7.1/2
    3/4UNC
    280
    415
    BTL1900248
    0-0
    9.3/4
    3/4UNC
    340
    470
    BTL2811178
    1-1
    7"
    1.1/8UNC
    290
    375
    BTL2812178
    1-2
    7"
    1.1/8UNC
    300
    380
    BTL2822178
    2-2
    7"
    1.1/8UNC
    305
    385
    BTL2811228
    1-1
    9"
    1.1/8UNC
    345
    475
    BTL2812228
    1-2
    9"
    1.1/8UNC
    350
    485
    BTL2822228
    2-2
    9"
    1.1/8UNC
    355
    490
    BTL2811260
    1-1
    11.1/4"
    1.1/8UNC
    405
    610
    BTL2812260
    1-2
    11.1/4"
    1.1/8UNC
    415
    615
    BTL2822260
    2-2
    11.1/4"
    1.1/8UNC
    420
    620
    BTL2811330
    1-1
    13"
    1.1/8UNC
    445
    680
    BTL2812330
    1-2
    13"
    1.1/8UNC
    450
    685
    BTL2822330
    2-2
    13"
    1.1/8UNC
    460
    690
    BTL2811368
    1-1
    14.1/2"
    1.1/8UNC
    485
    685
    BTL2812368
    1-2
    14.1/2"
    1.1/8UNC
    495
    690
    BTL2822368
    2-2
    14.1/2"
    1.1/8UNC
    510
    800
    BTL2811406
    1-1
    16"
    1.1/8UNC
    520
    710
    BTL2812406
    1-2
    16"
    1.1/8UNC
    525
    720
    BTL2822406
    2-2
    16"
    1.1/8UNC
    535
    825
    BTL2811438
    1-1
    17.1/4"
    1.1/8UNC
    550
    745
    BTL2812438
    1-2
    17.1/4"
    1.1/8UNC
    560
    750
    BTL2822438
    2-2
    17.1/4"
    1.1/8UNC
    565
    860
    BTL2811508
    1-1
    20"
    1.1/8UNC
    620
    815
    BTL2812508
    1-2
    20"
    1.1/8UNC
    630
    820
    BTL2822508
    2-2
    20"
    1.1/8UNC
    635
    925
    BTL2811610
    1-1
    24"
    1.1/8UNC
    725
    915
    BTL2812610
    1-2
    24"
    1.1/8UNC
    730
    920
    BTL2822610
    2-2
    24"
    1.1/8UNC
    735
    1030
    BTL3222380
    2-2
    15"
    1.1/4UNC
    508
    785
    BTL3222482
    2-2
    19"
    1.1/4UNC
    610
    895
    •

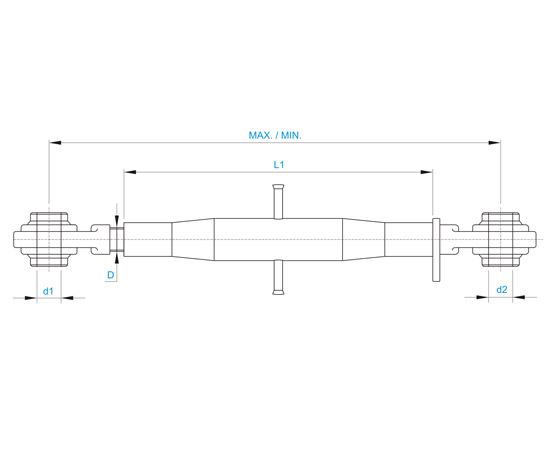

  • top link assemblies

    Thread M 22 x 2.5

    Code
    Cat d1-d2
    Pipe / L1
    Thread D
    Min.
    Max.
    BTL2211180
    1-1
    180
    M22x2.5
    290
    440
    BTL2211220
    1-1
    220
    M22x2.5
    330
    480
    BTL2211230
    1-1
    230
    M22x2.5
    340
    490
    BTL2211300
    1-1
    300
    M22x2.5
    410
    560
    BTL2211280
    1-1
    280
    M22x2.5
    390
    540

    Thread M 24 x 3

    Code
    Cat d1-d2
    Pipe / L1
    Thread D
    Min.
    Max.
    BTL2411120
    1-1
    120
    M24x3
    230
    410
    BTL2411140
    1-1
    140
    M24x3
    250
    430
    BTL2411150
    1-1
    150
    M24x3
    260
    440
    BTL2411165
    1-1
    165
    M24x3
    275
    445
    BTL2411180
    1-1
    180
    M24x3
    290
    470
    BTL2411200
    1-1
    200
    M24x3
    310
    490
    BTL2411230
    1-1
    230
    M24x3
    340
    520
    BTL2411250
    1-1
    250
    M24x3
    360
    540
    BTL2411270
    1-1
    270
    M24x3
    380
    560
    BTL2411300
    1-1
    300
    M24x3
    410
    590
    BTL2411330
    1-1
    330
    M24x3
    440
    620
    BTL2411370
    1-1
    370
    M24x3
    470
    650
    BTL2411400
    1-1
    400
    M24x3
    500
    680
